Invar footplate/shoe for "curtain facades"
Artikelnummer: 44-ILA6
Ursprungligt pris
3.120,00 kr
-
Ursprungligt pris
3.120,00 kr
Ursprungligt pris
3.120,00 kr
3.120,00 kr
-
3.120,00 kr
Aktuellt pris
3.120,00 kr
Standardfrakt
Ca 7-10 dagars leveranstid

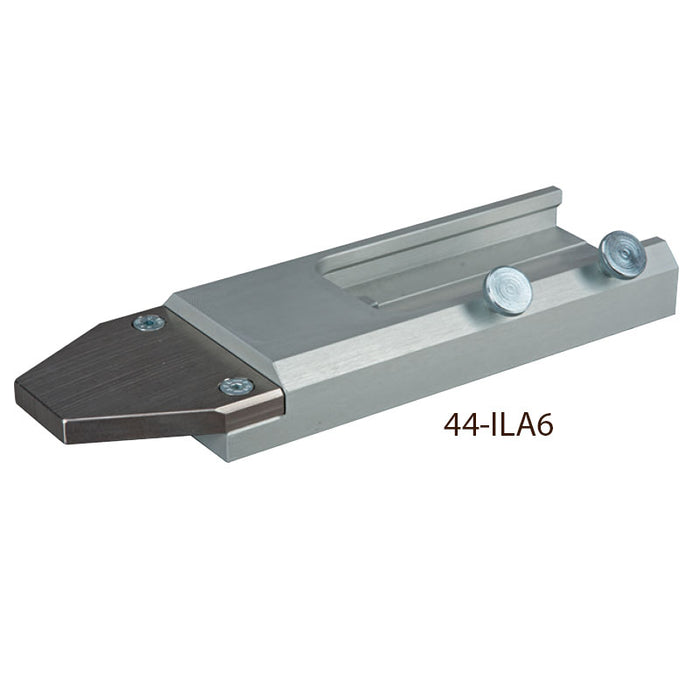

Invar footplate/shoe for special "curtain facades", extension 60mm
- Used when measuring on measuring studs on buildings that are retrofitted with curtain wall facades or facade insulation, etc.

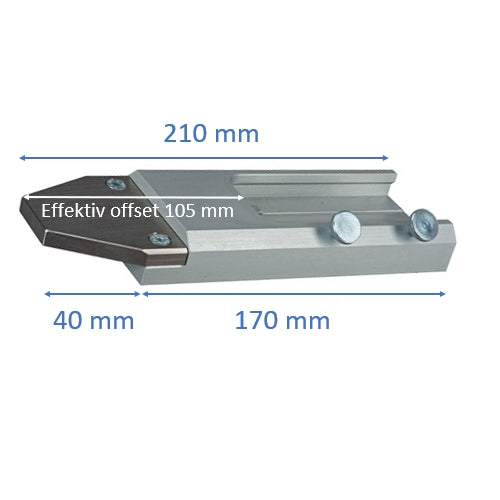

- Total length of the invar footplate is 210 mm
- Effective offset is 105 mm
- A durable, hardened steel plate extended by 60 mm.
- Due to the design, no height adjustment is required, the underside of the steel plate has the same height as the underside of the foot plate of the invar rod.
Sökord: Invarfotplatta/sko för gardinfasader
